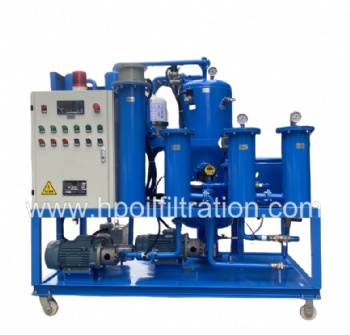

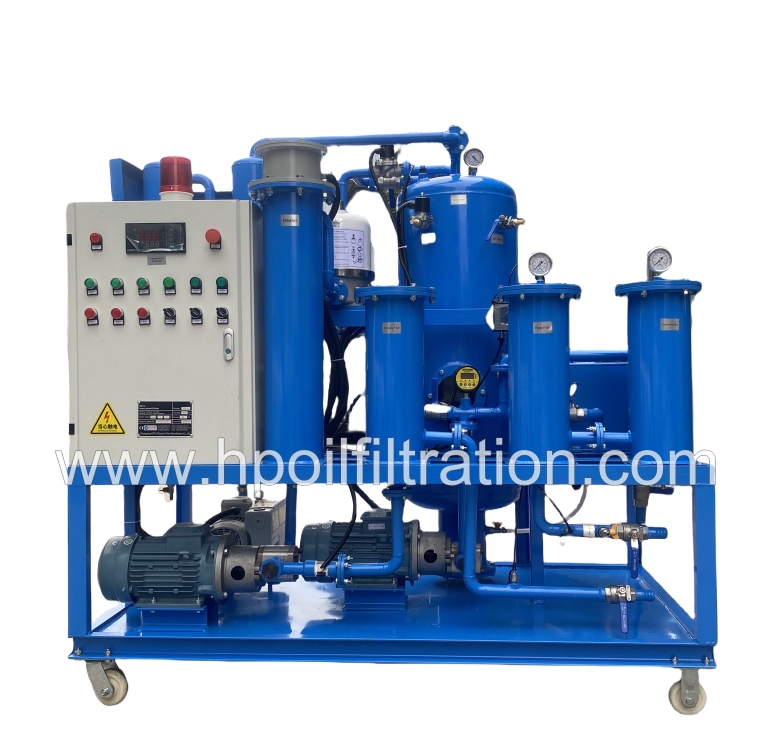

Enhanced Lube Oil Purifier

HOPU brand TYA Series Enhanced Lube Oil Purifier is designed to actively removes water and particles. It restores oil to its ideal condition. This extends equipment life and boosts reliability.

Inquiry Now

Description

Enhanced Lube Oil Purifier: Peak Performance Starts with Pure Oil

Industrial machinery demands peak performance. That performance relies heavily on clean, dry lubricating oil. Contaminants like water and solid particles are the enemies. They cause wear, corrosion, oxidation, and costly downtime. HOPU brand TYA Series Enhanced Lube Oil Purifier is your ultimate solution. It actively removes water and particles. It restores oil to its ideal condition. This extends equipment life and boosts reliability.

Core Mission: Restoring Oil Purity

This machine tackles the two biggest threats to oil: water and solid particles. It uses advanced methods. These methods are more effective than basic filters alone. The result is oil that performs like new. vacuum lube oil dehydrator.jpg 1. Advanced Water Removal: Vacuum & Heat Synergy

Water in oil is bad news. It causes rust and reduces lubrication. Our purifier removes water efficiently. It uses a powerful combination:

The Vacuum System: This is the heart of dehydration. A strong vacuum pump creates a very low-pressure environment inside the vacuum chamber. A vacuum gauge lets you monitor the level precisely. Lower pressure means water boils at a much lower temperature.

Smart Heating: An integrated heater warms the oil before it enters the vacuum chamber. A temperature controller automatically adjusts the heat. Why heat the oil?

It lowers the oil's viscosity (makes it thinner).

Thinner oil releases trapped water droplets much more easily.

Heating also helps the water vaporize quickly under vacuum.

The Dehydration Process: Warm, thin oil enters the vacuum chamber. Under the strong vacuum, water and light volatile liquids instantly turn to vapor. Most of the mixed gas formed by the evaporated water vapor and gas is condensed into liquid by the condenser and stored in the water storage tank; at the same time, a small part of the non-condensable gas is discharged through the vent of the vacuum pump. . Clean, dry oil collects at the bottom. It is ready to move to the next cleaning stage.

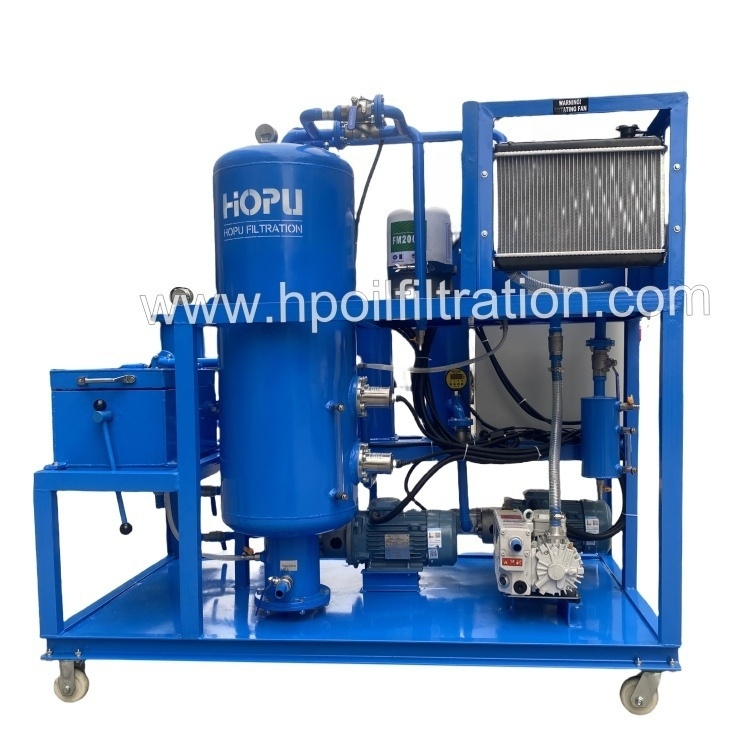

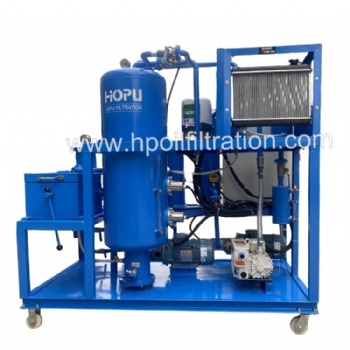

vacuum lube oil purification machine.jpg

2. Superior Particle Removal: Multi-Stage Defense

Getting rid of tiny solid particles is crucial. These particles act like sandpaper inside bearings and gears. Our enhanced lube oil purifier uses a powerful, multi-layered approach:

Triple-Stage Filtration: Lube oil passes through three separate filter housings. Each housing contains a filter cartridge, i.e. primary filter, secondary filter and fine filter, and these filter cartridges have different levels of filtration precision. They capture particles in stages. This prevents the finest filter from clogging too quickly. It removes particles down to very small sizes.

High-Force Centrifuge - The Power of Spin: After passes through primary filter, the oil goes through a centrifuge. Here's how it works:

The machine's oil inlet pump pushes the oil into the centrifuge.

The oil enters a hollow shaft.

It flows through holes in this shaft into the centrifuge's spinning rotor.

At the bottom of the rotor are two special nozzles. These nozzles point in opposite directions (reverse nozzles).

Pressurized oil shoots out of these nozzles. This jet force makes the rotor spin extremely fast. High centrifugal force is generated inside.

As the contaminated oil flows through the spinning rotor, the centrifugal force acts. Heavy solid particles and sludge are thrown radially outward with tremendous force.

These particles slam against the inner wall of the rotor. Over time, they are squeezed into a dense, solid layer or "cake."

This step is incredibly effective for removing particles and stubborn sludge.

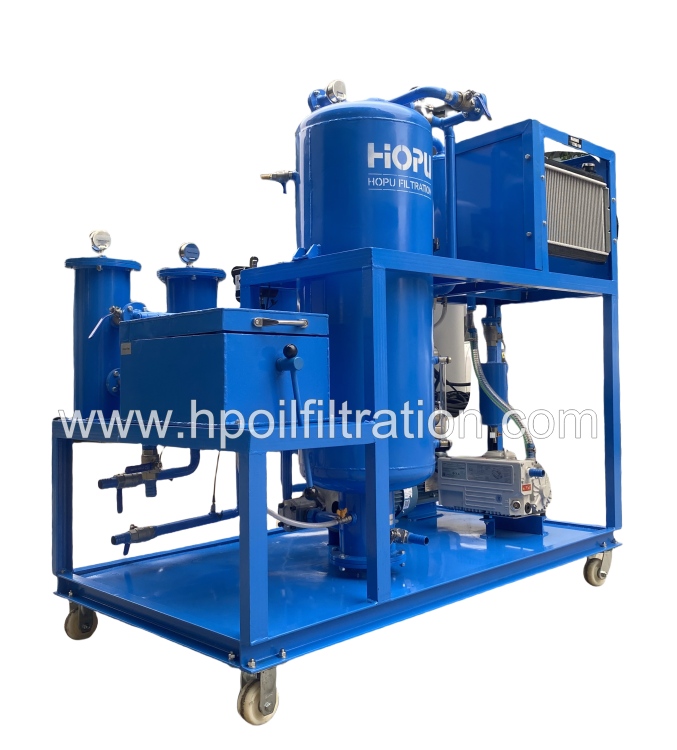

vacuum lube oil purifier with paper filter.jpg Optional Plate and Frame Filter: For the absolute finest cleaning, we include a Plate and Frame Filter (sometimes called a Filter Press). This uses special filter paper as the final barrier. It catches the tiniest particles. A simple switch valve lets you decide: you can send the oil through the plate filter, or you can bypass it if not needed. This gives you flexibility based on how dirty the oil is.

Quality Assurance: Real-Time Verification

Knowing your oil is clean is vital. Our Enhanced Lube Oil Purifier doesn't guess. It tells you:

Online Particle Counter: This sensor continuously checks the oil. It counts and sizes particles as they pass through. You see real-time data. You know exactly how clean your oil is right now. This helps confirm the machine's performance. It also tells you when filters need changing.

VFD: Three sets of VFD(Variable-frequency Drive) for vacuum pump, oil inlet pump and oil outlet pump, which not only make the machine suitable for the Hertz of customer's power supply, but also make the machine runs smoothly.

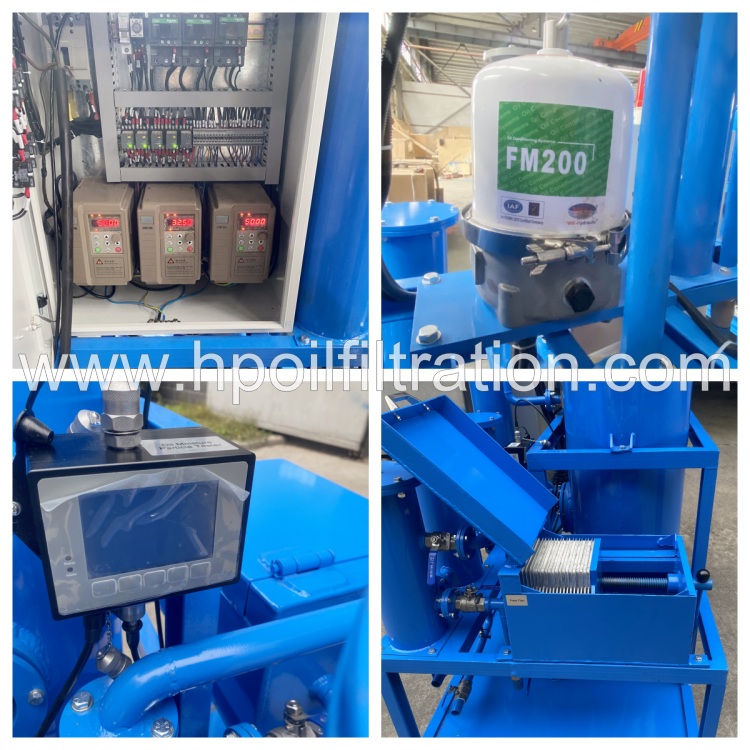

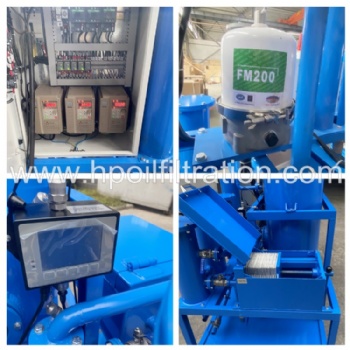

vacuum lube oil purifier with centrifuge.jpg

Moisture Tester: This sensor constantly measures the water content in the oil (usually in ppm - parts per million). You see the results instantly. You know precisely how dry your oil is after the vacuum process.

Key Benefits: Why Choose Our Enhanced Purifier?

Maximum Water Removal: Vacuum dehydration combined with smart heating is highly effective.

Deep Particle Cleaning: Three-stage filters plus centrifugal force remove even the finest contaminants.

Flexible Operation: The switch valve lets you use the plate filter when needed.

Proven Cleanliness: Online sensors give instant proof of oil quality.

Protects Equipment: Clean, dry oil reduces wear. It prevents rust and oxidation. This extends the life of engines, turbines, gearboxes, and hydraulic systems.

Saves Money: Reduce oil changes. Avoid costly repairs and downtime. Lower maintenance costs.

Boosts Efficiency: Machinery runs smoother and cooler with clean lubricant.

Simple Operation: Designed for reliability and ease of use.

Conclusion: Invest in Performance, Invest in Longevity

Our Enhanced Lube Oil Purifier is more than just a filter. It's a complete oil restoration system. It uses vacuum, heat, multi-stage filtration, powerful centrifuge, and optional final plate and frame press paper filter. It removes water and particles aggressively. Real-time sensors confirm the results. Protect your valuable equipment. Ensure it runs reliably and efficiently for years to come. Keep your oil pure. Keep your operations running smoothly. Choose the Enhanced Lube Oil Purifier – where peak performance begins.

vacuum lube oil purifier.jpg
