coalescence separation filter which integrates high precision filtration and high efficient demulsification and dehydration into one, and can remove large amount of water without heating. It has the fastest dehydrating speed

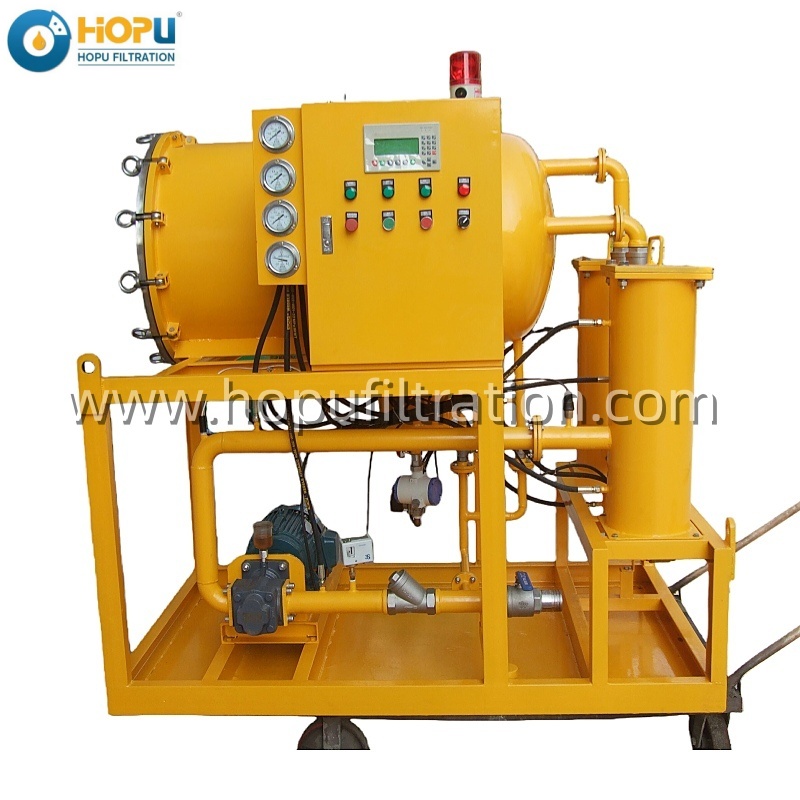

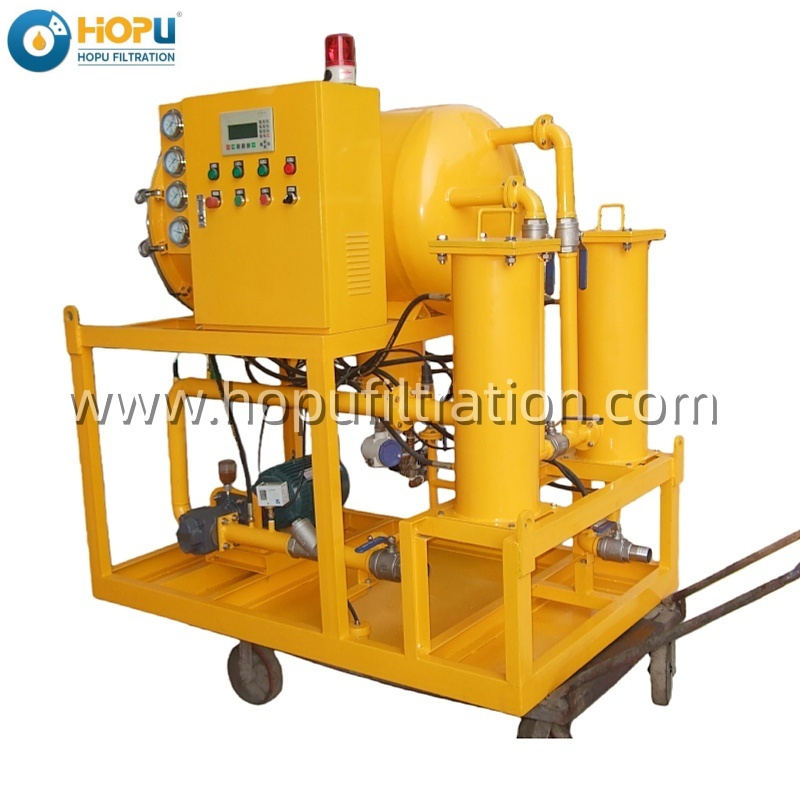

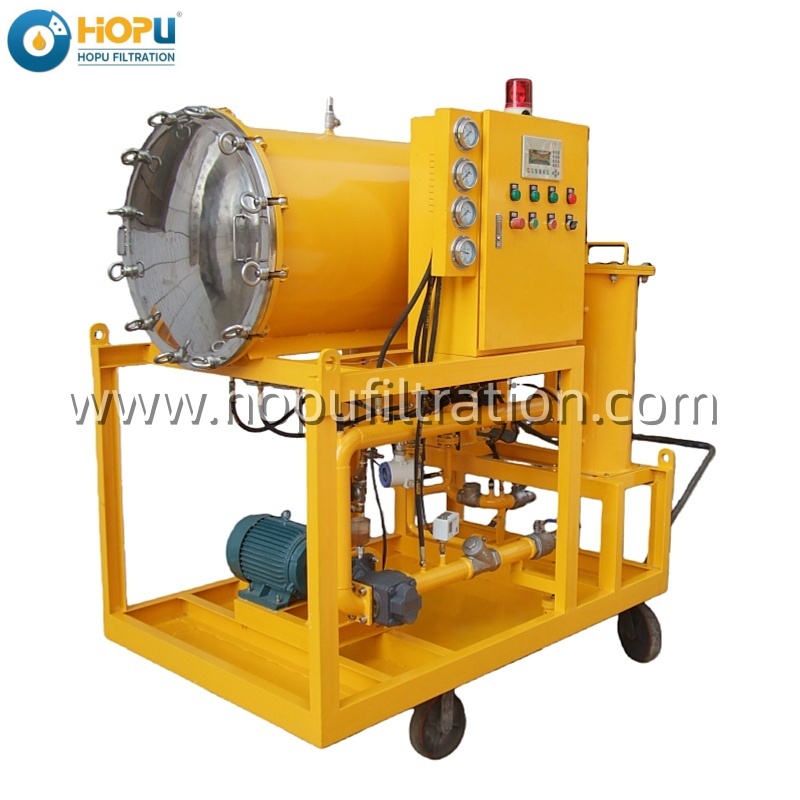

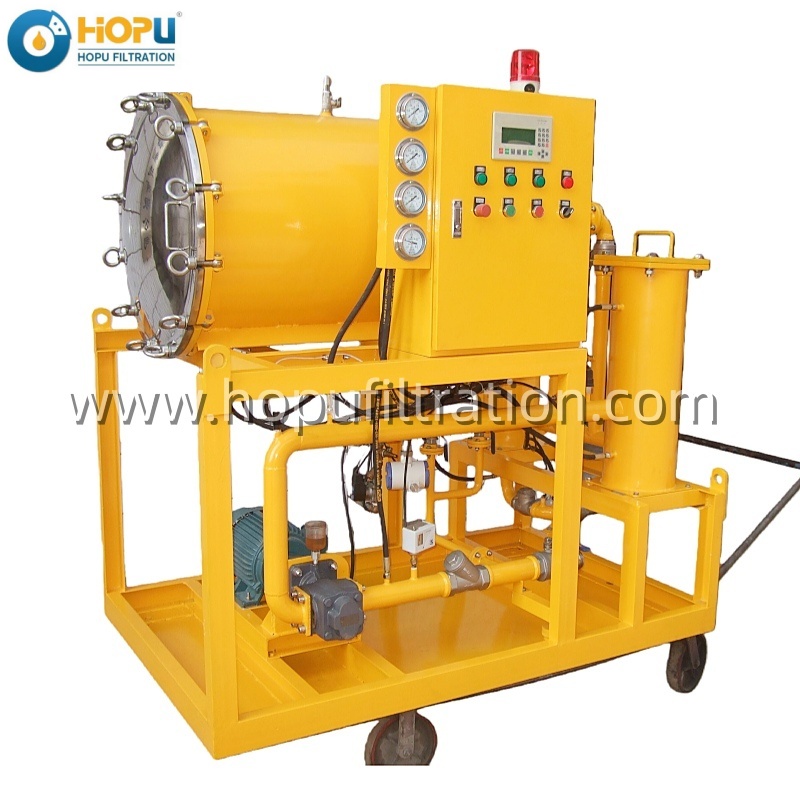

Coalescence Separation Diesel oil purifier Application:
It is for treating the diesel oil,fuel oil,gasoline oil for the generators.
This machine integrates fine filter, high efficiency demulsification and dehydration into one body. This machine, which can remove large amount of water without heating, even 50% water, creates the fastest dehydration speed.

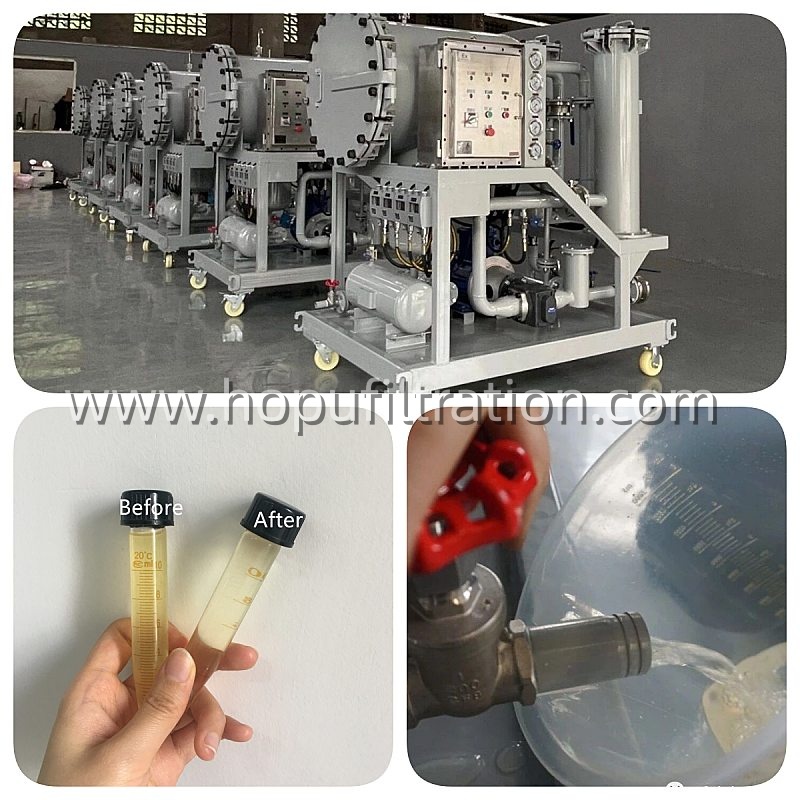

It can quickly separate water from the oil, which even contains half water, to attain cleanness of NAS 6 grade.
It is consisted of rough filter, second filter, fine filter, coalescence filter & separation filter, oil pump and electronic control system. It has 3 functions: 1) filtration and dehydration function to remove emulsified water, free water and impurities. 2) It can be used as oil filling machine only to remove impurities from oil. Its work theory: oil goes through specially made filter from outside to inside, by this direction, the hole of filter layer is smaller and smaller, different layer can prevent different size of impurities. This design improved lifetime and efficiency of filter. 3) There is inner circulation so that operator can replace coalescence and separation filter.
It is also applicable for the filtration and dehydration system of turbine oil. It has two functions of good filtration and dehydration, which can effectively remove impurities, emulsified water and free water from oil. It can improve oil quality, reduce cost of reprocessing and pollution, and reduce cost of maintenance and operation.
Technical Parameters:
| Parameters | Unit | TYB-10 | TYB-20 | TYB-30 | TYB-50 | TYB-100 | TYB-150 | TYB-200 | TYB-300 | |
| Flow rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | |
| Working pressure | Mpa | ≤0.3 | ||||||||
| Working noise | Db(A) | ≤65-75 | ||||||||
Running hours without malfunction | H | ≥4000 | ||||||||
| Continuous running hours | H | ≥150 | ||||||||
| Water content | PPM | ≤3 | ||||||||
| Particle Size | um | 0.5 | ||||||||
| Cleanliness | NAS | ≤6 | ||||||||
| Power | KW | 1.1 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5 | 5 | |
| Size(optional) | mm | 700*570*1200 | 700*600*1200 | 800*600*1200 | 850*650*1200 | 900*680*1200 | 1100*750*1200 | 1300*750*1200 | 1400*800*120 | |
| Weight | Kg | 150 | 200 | 300 | 350 | 400 | 450 | 500 | 550 | |
