Oil Particle Counter for Lube Hydraulic Oil NAS  and moisture PPM analyzer,

Portable Laboratory Test Equipment For Testing Oil for Contamination By Determining The NAS and ISO Code Numbers

HOPU LPC Series Laser particle counter is an intelligent, portable and efficient oil analyzer. It adopts the principle of laser blockage method (laser shading method) to detect the size and number of solid particles in the oil. Based on the measurement, it does the analysis and displays the oil contamination class in different standards (e.gNAS1638,ISO4406) so as to help the operator be aware of the potential risks and avoid any inevitable wear of parts.

Compared with products of other brands in the market, it has many outstanding features. It's able to determine accurately the status of the hydraulic system or the lubricant circuit and therefore help to minimize the cost of repairs, promote the safety of the system and extend the lifespan of equipment.

LPC-P50 adopts the touch screen operation. Information of the measuring objects and operator could be input into the instrument. The oil contamination level could be displayed in the form of digits, diagrams and graphs. It's able to examine the mineral oil and phosphate ester syn oil, such as hydraulic oil, lubricant, transformer oil (insulating oil), turbine oil, gear oil, motor oil, jet fuel, etc. It can be widely applied in the field of aerospace, power generation, petroleum, chemical engineering, transportation, port, metallurgy, machinery, vehicle manufacturing, etc.

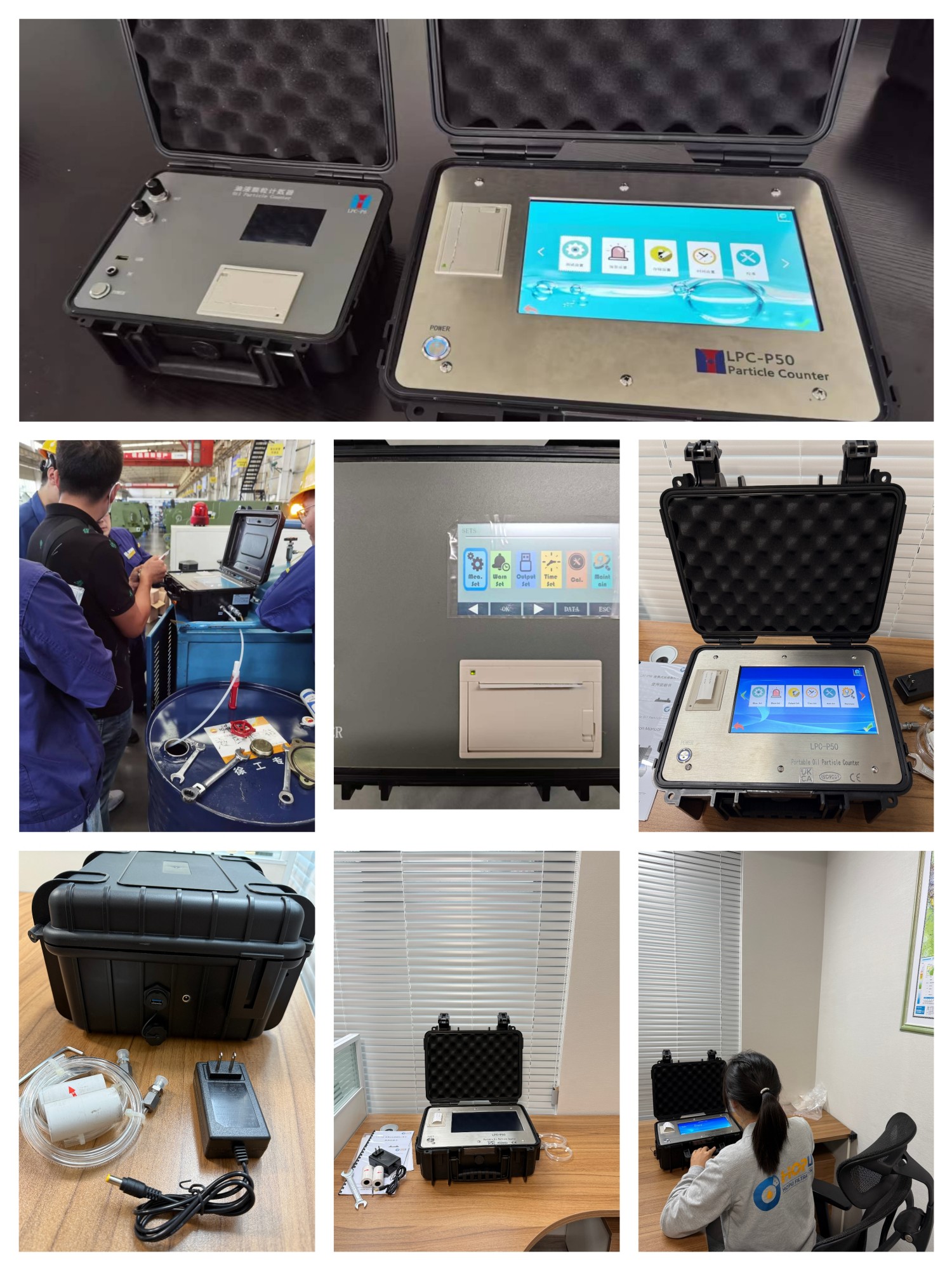

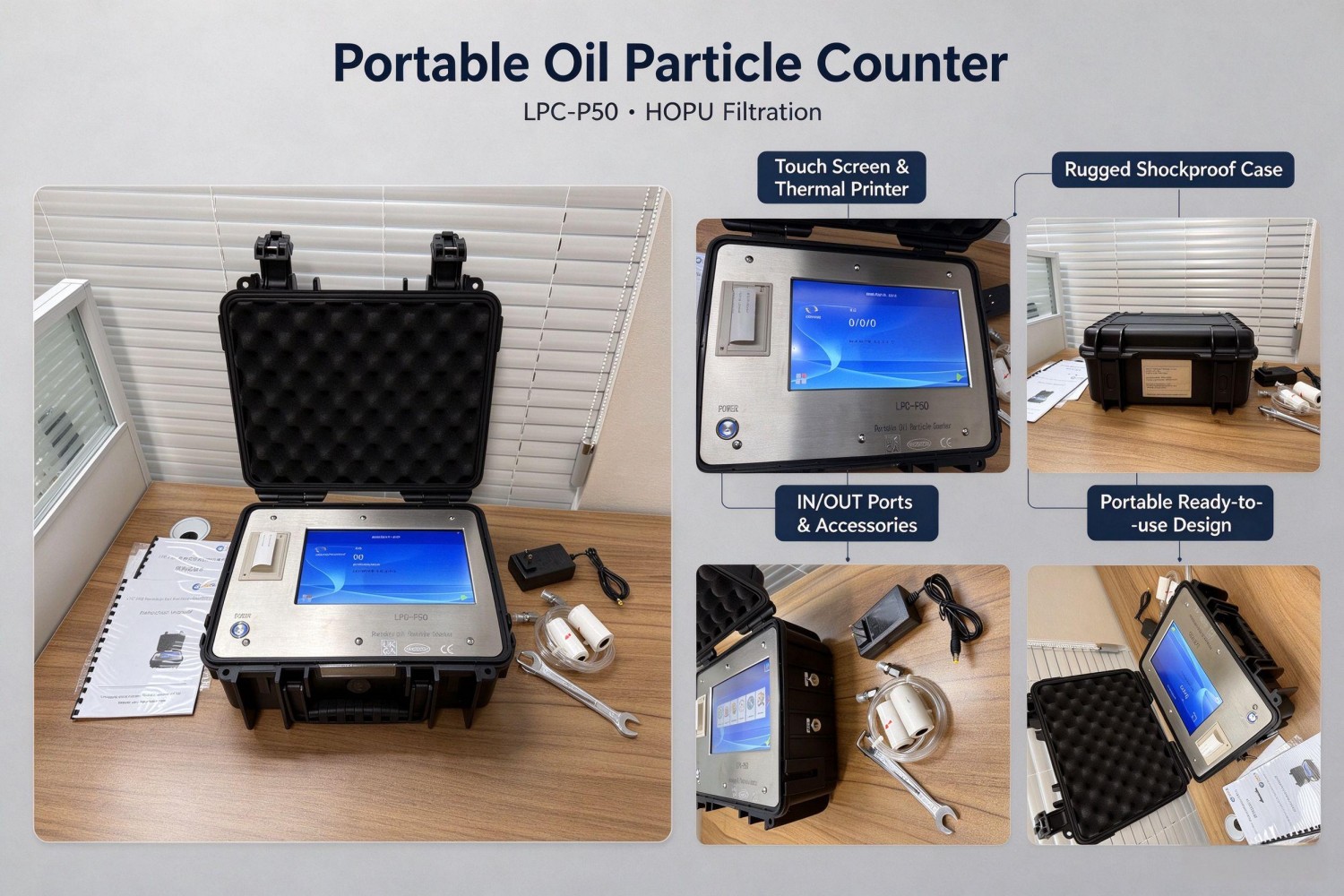

The LPC-P50 portable particle counter is designed with the principle of photoresistance method (shading method), and is a rapid detection device specially used for on-site oil pollution levels. It has the advantages of small size, light weight, fast detection speed, high accuracy, and good repeatability. It can work under extremely harsh conditions such as high temperature and high pressure. The LPC-P50 portable particle counter has a built-in micro-water sensor and a temperature sensor, which can detect the water content and temperature at the same time as detecting the pollution degree in the oil. It can be widely used for hydraulic oil, lubricating oil, transformer oil (insulating oil), turbine oil (turbine oil), gear oil, engine oil, etc. Liquid detection.

1. Adopting the principle of photoresistance (shading) method, using high-precision laser sensor, small size, high precision and stable performance

2. It is suitable for laboratory or on-site testing, and can also be equipped with a pressure reducing device for online high pressure measurement, real-time monitoring of particle pollution in the oil system

3. The external pressure chamber can be connected to form positive/negative pressure to realize the detection of high-viscosity samples and sample degassing

4. The built-in data analysis system can display the real data of each channel particle size and automatically determine the sample level

5. The pipeline adopts 316L and PTFE materials to meet the testing of various organic solvents and oils

6. With volume flushing and duration flushing modes, it is convenient for users to use and maintain the equipment

7. Built-in ISO4406, NAS1638, SAE4059 (integral and difference), GJB420A, GJB420B, ГOCT17216, GB/T14039 and other particle pollution grade standards

8. Built-in calibration function, can be calibrated according to GB/T21540, ISO4402, GB/T18854 and other standards

9. Built-in data analysis system, can automatically determine the sample level according to the standard, with automatic data processing and printing functions

10. Built-in micro water sensor and temperature sensor

11. Chinese and English bilingual, one-key switching, with preset, input, modification, and storage functions, convenient and quick operation

12. Large storage, you can choose to store in the instrument's internal or external storage devices

13. Embedded design, high-strength shell, easy to carry, suitable for all kinds of construction machinery
