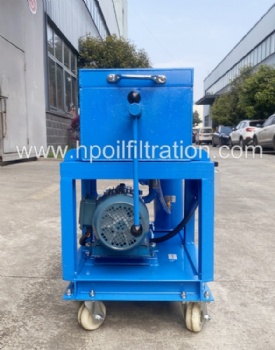

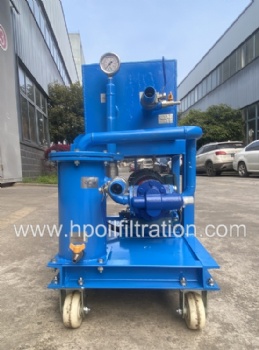

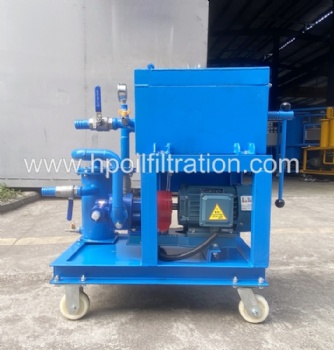

Plate & Frame Oil Press Filtering Unit

The unit can effectively remove solid contaminants and sludge from a wide range of industrial oils, restoring oil to operational cleanliness and extending equipment life.

Inquiry Now

Description

HOPU LY Series Plate & Frame Oil Press Filtering Unit is a economical solution designed for the purification of a wide range of industrial oils, including hydraulic oil, lubricating oil, turbine oil, gear oil, and transformer oil. It effectively removes solid contaminants and sludge, restoring oil to operational cleanliness and extending equipment life.

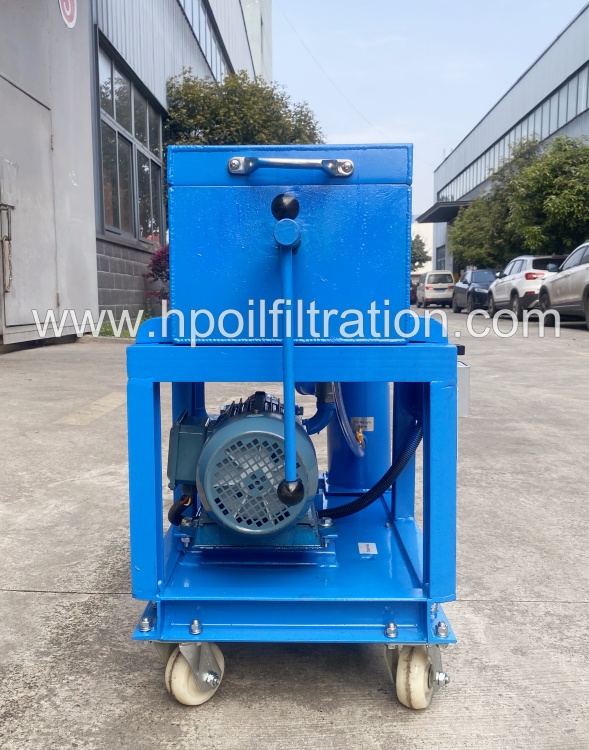

oil press filtering unit.jpg

Applications:

Protecting hydraulic systems, gearboxes, compressors, and turbines from abrasive wear; Maintaining clean turbine oil and transformer oil for reliable operation; Ensuring optimal lubrication for machine tools, presses, and production lines; Oil reclamation and offline purification during equipment servicing.

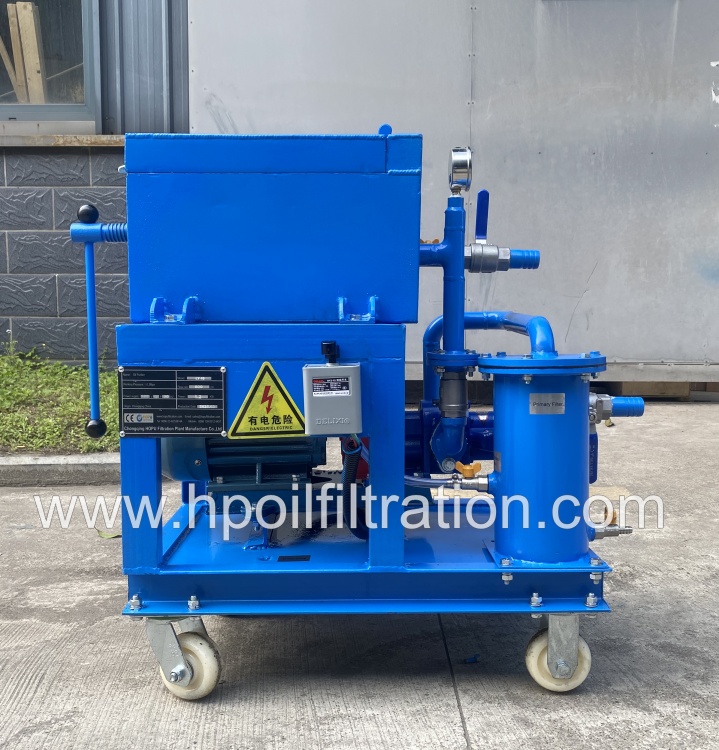

plate and frame oil filtering unit.jpg

Technical specification

Model			LY-30	LY-50	LY-100	LY-125	LY-150	LY-200	LY-300
Capacity( L/min)			30	50	100	125	150	200	300
Working pressure (Mpa)			0~0.4
Filtering space (㎡)			0.48	0.6	1.57	1.88	2.35	3.14	4.08
Plate size (mm)			180×180		280×280
Filter paper size (mm)			180×180		280×280
Filtering precision			≤ 1 micron
Pressure type			Manual type
Filter ring quantity			12	16	20	24	30	40	52
Filter plate quantity			14	18	22	26	32	42	54
Motor	Power (KW)		1.1	1.5	2.2		4	5.5	7.5
	Speed (r/min)		1400	1400	1400		1400	1400	1400
Inlet caliber			1		1 1/4				2 1/2
Outlet caliber			3/4		1 1/4				2 1/2
Dimension (mm)		L	800		820		900	1150	1200
		W	300		410		410	430	450
		H	650		850		850	920	950
Weight			150	185	280	295	320	330	350

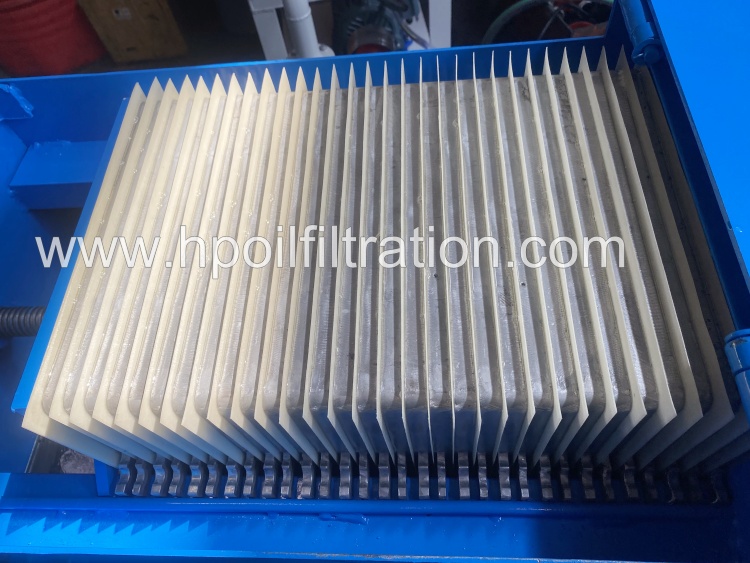

plate and frame paper filter.jpg

Product Highlights:

Compact and Portable Design: Designed for a space-saving footprint, this unit is ideal for workshops or sites with limited space. Integrated lifting points and casters facilitate effortless movement in the workshop.

Low Operating Costs: The unit operates without expensive consumable filter cartridges. Utilizing readily available, cost-effective filter paper significantly reduces long-term expenditure. Simple design minimizes maintenance requirements.

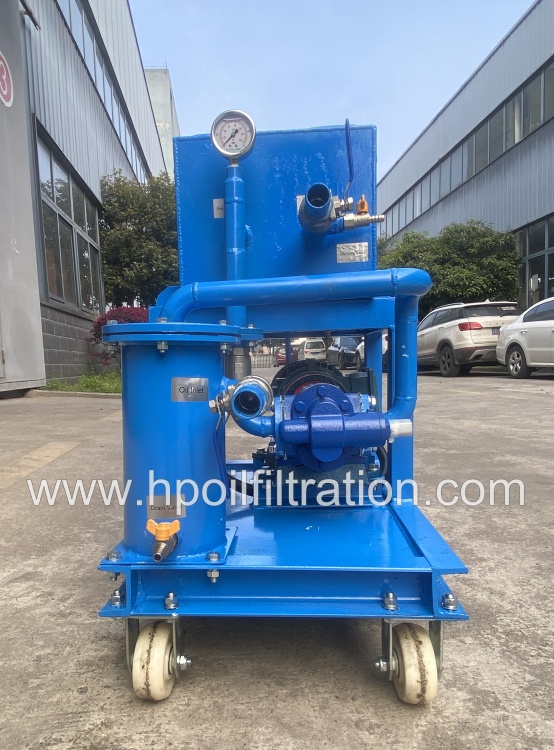

portable lube oil filtering unit.jpg

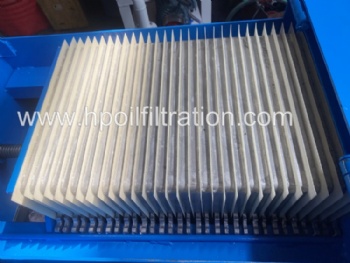

High Filtration Precision: The core plate and frame design applies high pressure to force oil through specially selected filter paper. This achieves remarkably fine filtration levels, effectively removing sub-micron particles and gels. Filtration fineness can be tailored by choosing the appropriate grade of filter paper (e.g., down to 1-3 microns absolute). Visible contaminants trapped on the filter paper provide clear proof of effectiveness.

Robust Construction & Safety: Built with high-quality materials (sturdy plates, frames, and a reliable pump) to withstand industrial pressures. Features include pressure gauges for monitoring and safety relief valves for operator protection.

Simple Operation & Maintenance: Easy-to-use design with straightforward filter paper changing procedures. No complex setup or specialized training required.

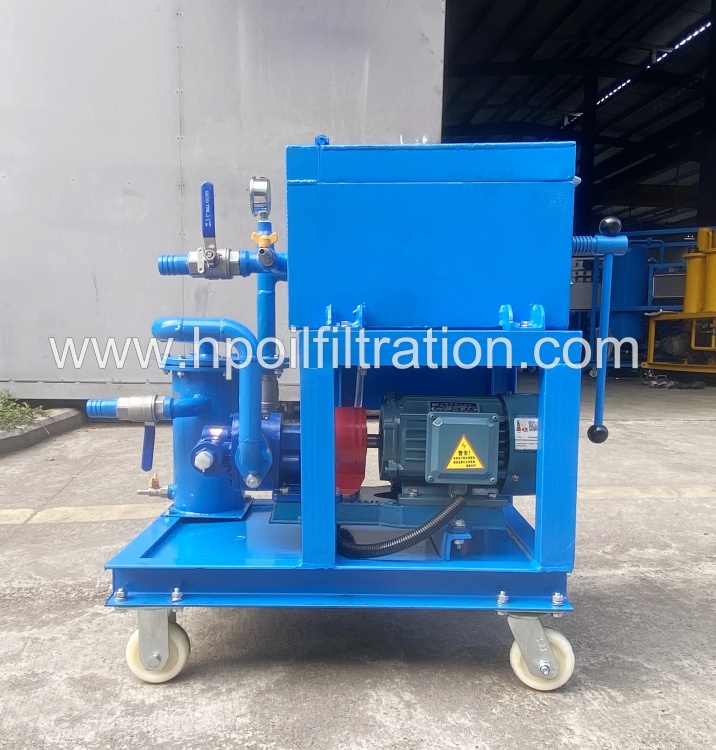

portable lube oil purifier.jpg

HOPU Plate & Frame Filtering Unit delivers reliable, cost-effective purification, safeguarding your valuable equipment and maximizing oil service life through its superior design, portability, and high-performance filtration.
